Application:
Currently, hospitals at all levels commonly
use vacuum blood collection tubes when collecting blood samples. After
centrifugation, the caps must be manually removed, which is inefficient and the
vibration generated during cap removal can cause the blood to remix, increasing
the risk of bacterial infection. Our company's automatically cap-removing
centrifuge has significantly improved efficiency, completely solving the
problem of cap removal from vacuum blood collection tubes that has plagued
hospitals at all levels for many years
Features:
- Vacuum blood collection tubes are uncapped
automatically, and the success rate of uncapping is >98%.
- Suitable for the lengths of 100mm and 75mm.
- Touching panel, LCD (7.1 inches) screen,
which can display the speed, centrifugal force and time in real time at the
same time. The operation data can be set according to demands and stored
automatically.
- Lid safety device, with Lid, over-speed,
unbalance protection system, automatic fault alarm function, safe and reliable.
Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber
during operation. Electronic lock and emergency lid release are available.
- 10 programs of acceleration and
deceleration level for your choice.
Specification:
|

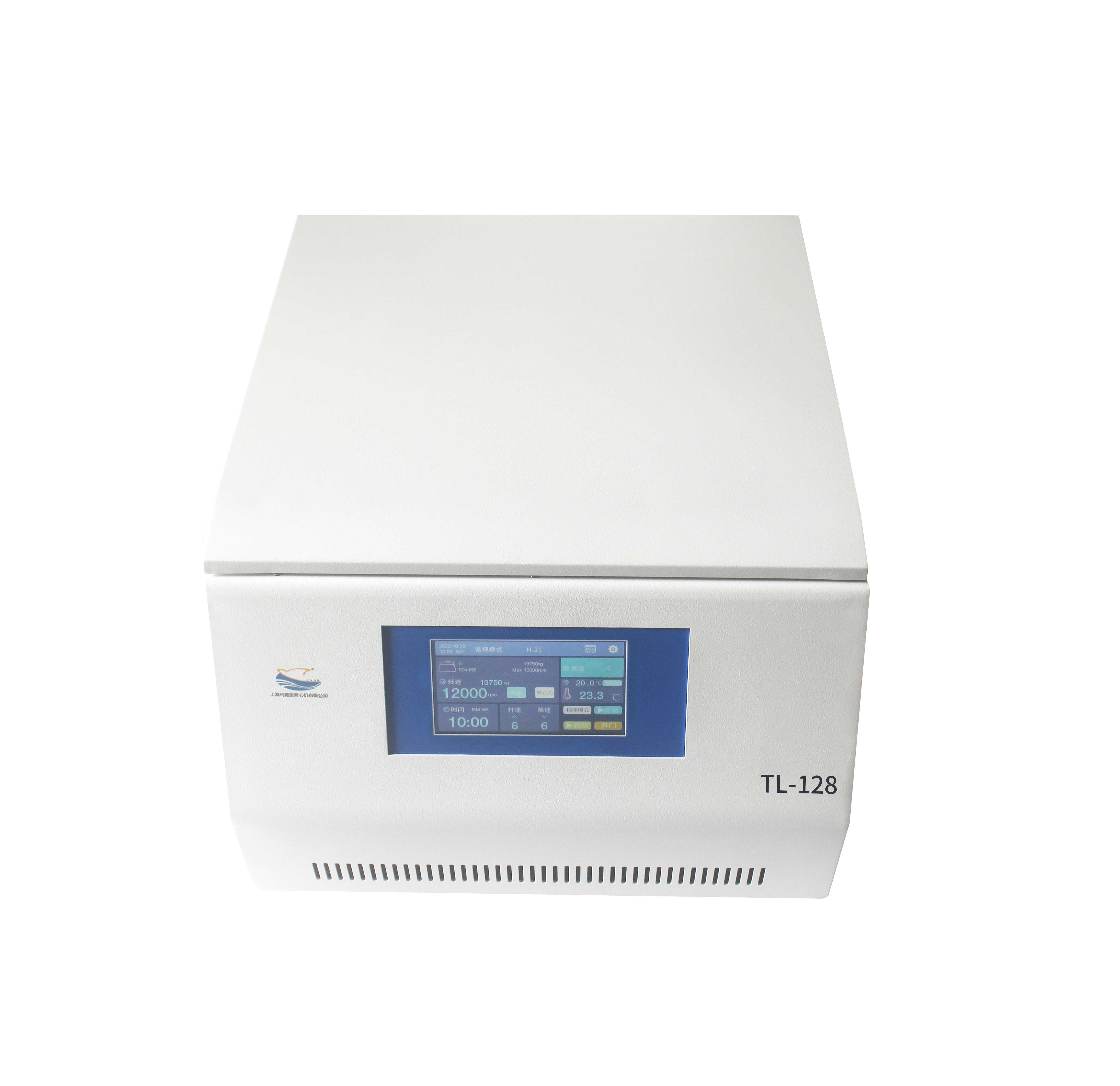

Model
|
TL-128
|
|
Max. Speed
|
4000r/min
|
|
Max. RCF
|
3750×g
|
|
Max. Capacity
|
100支(ɸ13×75/100mm)
|
|
Speed Accuracy
|
±10r/min
|
|
Time Range
|
10s-9h59min59s
|
|
Noise
|
≤ 65dB(A)
|
|
Voltage Supply
|
AC220V/ 50Hz/ 20A (OR AC110V)
|
|
Power
|
1.2KW
|
|
Dimension (mm)
|
680×520×480 mm(L×W×H)
|
|
Weight (kg)
|
65KG
|
Rotor parameters:
|
Rotor No.
|
Rotor Name
|
Max. Speed(r/min)
|
Max. RCF
|
Capacity (Tubes* ml)
|
|
No.1
|
Horizontal rotor
|
4000
|
3750
|
100 hole
|
|
Adaptor
|
16×50ml
|
|
Adaptor
|
64×15ml
|
|

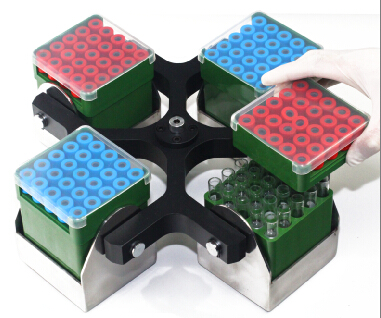

No.2
|
Horizontal enzyme-labeled rotor
|
4000
|
3040
|
PCR 4×2×96
|
