Home >> Centrifuge >> Uncapped automatically Refrigerated Centrifuge TL-128R

Hat off Automatic

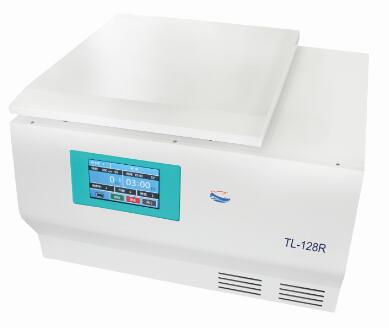

Uncapped automatically Refrigerated Centrifuge TL-128R

Application:

Currently, hospitals at all levels commonly use vacuum blood collection tubes when collecting blood samples. After centrifugation, the caps must be manually removed, which is inefficient and the vibration generated during cap removal can cause the blood to remix, increasing the risk of bacterial infection. Our company's automatically cap-removing centrifuge has significantly improved efficiency, completely solving the problem of cap removal from vacuum blood collection tubes that has plagued hospitals at all levels for many years

Features:

  • Vacuum blood collection tubes are uncapped automatically, and the success rate of uncapping is >98%.
  • Suitable for the lengths of 100mm and 75mm.
  • Touching panel, LCD (7.1 inches) screen, which can display the speed, centrifugal force and time in real time at the same time. The operation data can be set according to demands and stored automatically.
  • Lid safety device, with Lid, over-speed, unbalance protection system, automatic fault alarm function, safe and reliable. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation. Electronic lock and emergency lid release are available.
  • 10 programs of acceleration and deceleration level for your choice.

Specification:

Model

TL-128R

Max. Speed

4000r/min

Max. RCF

3750×g

Max. Capacity

100(ɸ13×75/100mm)

Speed Accuracy

±10r/min

Time Range

10s-9h59min59s

Temperatures Setting

-15℃~+40

Temperature Accuracy

±2

Compressor

high-performance compressor, gasR404a

Noise

65dB(A)

Voltage Supply

AC220V/ 50Hz/ 25A (OR AC110V)

Power

1.5KW

Dimension (mm)

720×550 ×480 mm(L×W×H)

Weight (kg)

130KG

Rotor parameters:

Rotor  No.

Rotor Name

Max. Speedr/min

Max. RCF

Capacity (Tubes* ml)

No.1

Horizontal rotor

4000

3750

100 hole

Adaptor

16×50ml

Adaptor

64×15ml

No.2

Horizontal enzyme-labeled rotor

4000

3040

PCR 4×2×96
