Home >> Centrifuge >> Uncapped automatically Refrigerated Centrifuge TL-80R

Hat off Automatic

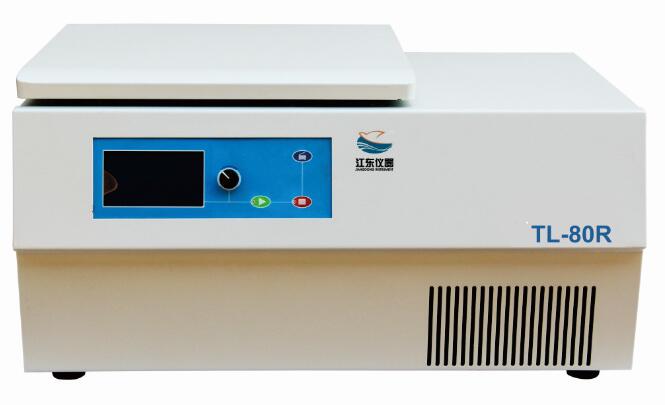

Uncapped automatically Refrigerated Centrifuge TL-80R

Application:

Currently, hospitals at all levels commonly use vacuum blood collection tubes when collecting blood samples. After centrifugation, the caps must be manually removed, which is inefficient and the vibration generated during cap removal can cause the blood to remix, increasing the risk of bacterial infection. Our company's automatically cap-removing centrifuge has significantly improved efficiency, completely solving the problem of cap removal from vacuum blood collection tubes that has plagued hospitals at all levels for many years

Features:

  • Vacuum blood collection tubes are uncapped automatically, and the success rate of uncapping is >98%.
  • Suitable for the lengths of 100mm and 75mm.
  • Microcomputer control, DC Frequency motor, Silent, constant, stable and high-speed accuracy.
  • Single knob button, parameters can be set according to demands during operation and stored automatically.
  • LCD screen, which can display the speed, centrifugal force and time in real time at the same time.
  • Lid safety device, with Lid, over-speed protection system, automatic fault alarm function, safe and reliable. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation. Electronic lock and emergency lid release are available.
  • 10 programs of acceleration and deceleration level for your choice.

Specification:

Model

TL-80R

Max. Speed

4500r/min

Max. RCF

4075×g

Max. Capacity

80(ɸ13×75/100mm)

Speed Accuracy

±10r/min

Time Range

10s-9h59min59s

Temperatures Setting

-15℃~+40

Temperature Accuracy

±2

Compressor

high-performance compressor, gas R404a

Noise

65dB(A)

Voltage Supply

AC220V/ 50Hz/ 15A(OR AC110V)

Power

0.87KW

Dimension (mm)

570×730×400mm(L×W×H)

Weight (kg)

120KG

Rotor parameters:

Rotor  No.

Rotor Name

Max. Speedr/min

Max. RCF

Capacity (Tubes* ml)

NO.1

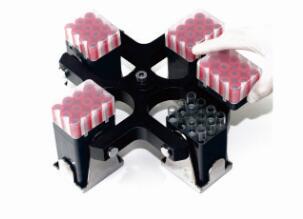

Horizontal rotor

4500

4075

32 Hole

Adaptor

8×50ml

Adaptor

24×15ml

Horizontal rotor

48 Hole

Adaptor

8×50ml

Adaptor

24×15ml

Horizontal rotor

64 Hole

Adaptor

16×50ml

Adaptor

36×15ml

Horizontal rotor

80 Hole

Adaptor

16×50ml

Adaptor

36×15ml

NO.2

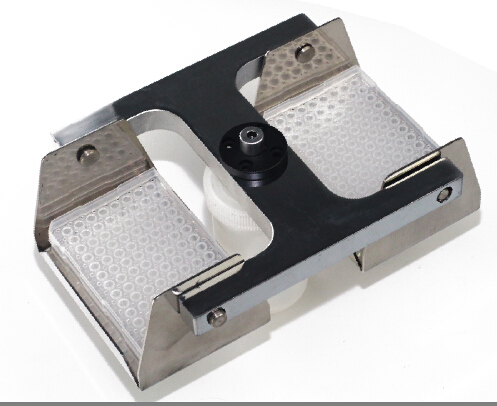

Horizontal enzyme-labeled rotor

4000

3040

4×2×96 PCR
