Clinical Centrifuge

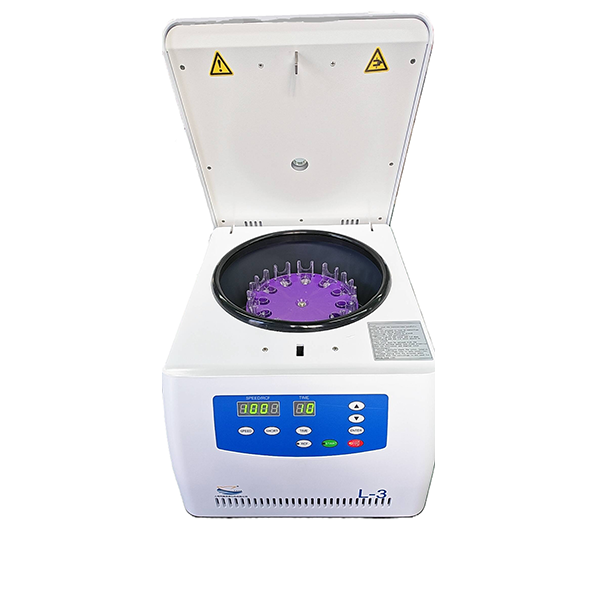

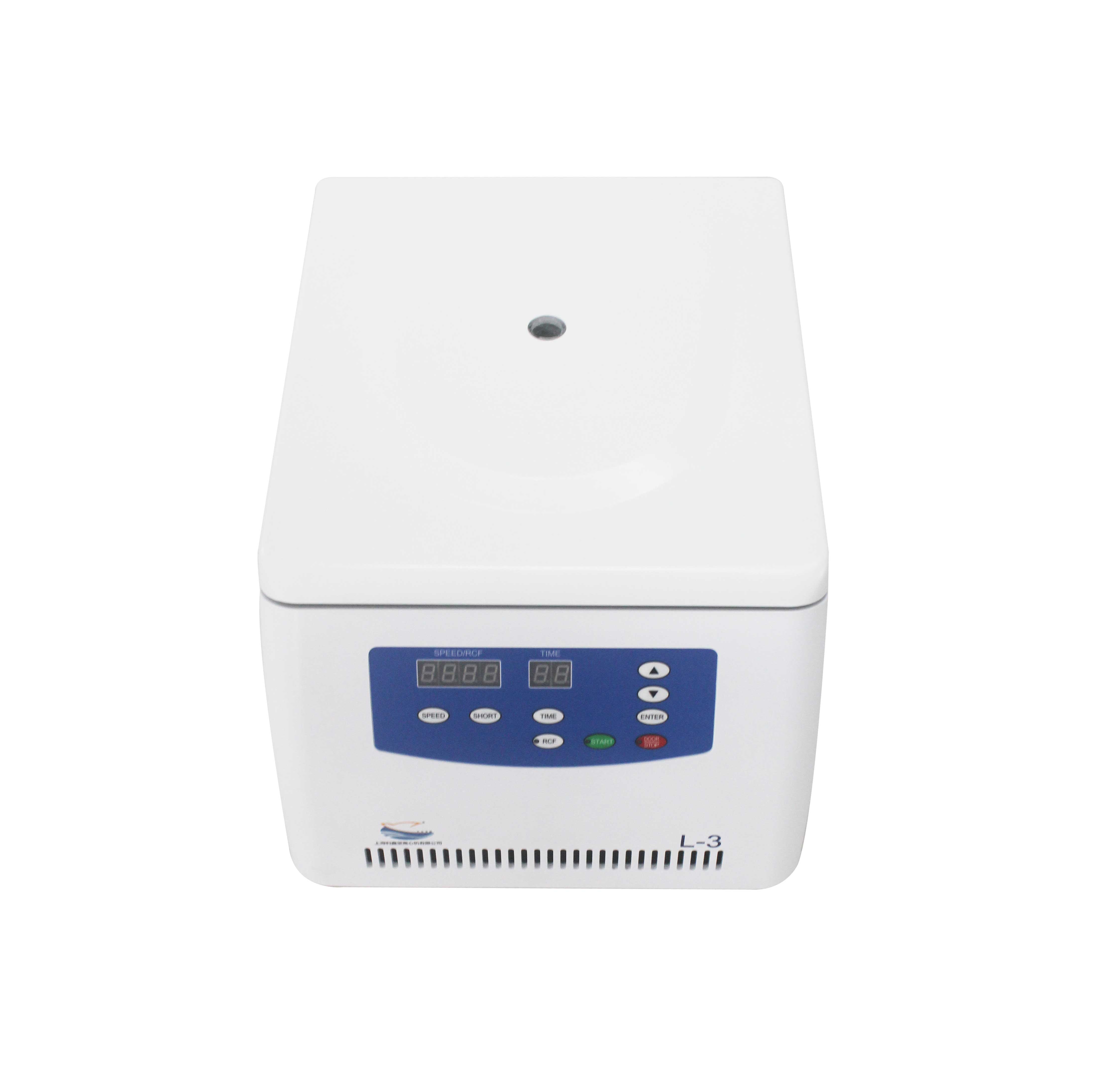

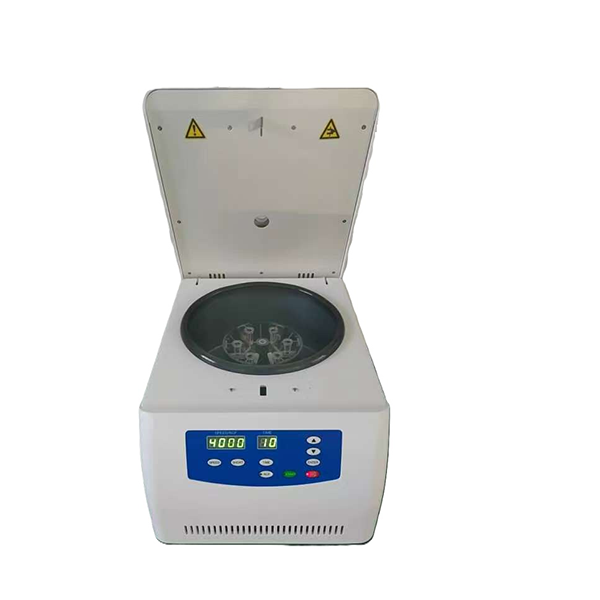

Cytospin Centrifuge L-3

Application:

It is widely used in the field of clinical medicine, biochemistry, genetic engineering and immunology etc. it is the essential equipment for centrifuge on used by hospitals, scientific research units and institutions of higher learning. Single knob can set time, speed, RCF, and programs etc., it is the easy machine.

Features:

  • Microcomputer control, DC Brush-less motor, Silent, constant, stable and high-speed accuracy
  • Touch button, parameters can be set according to demands during operation and stored automatically.
  • Digital display, which can switch the reading between rpm/RCF in real time.
  • ABS Outlook injection molding at one time, with simple appearance, light volume and low noise.
  • Lid safety device, with Lid, over-speed protection system, automatic fault alarm function, safe and reliable. Safety-Lock lid, which ensures a safe, tight closure on the centrifuge chamber during operation. Electronic lock and emergency lid release are available.

Specification:

Model

L-3

Max. Speed

3000r/min

Max. RCF

890×g

Max. Capacity

8× 0.5ml

12× 2ml

Speed Accuracy

±10r/min

Time Range

1min-99mins

Noise

50dB(A)

Voltage Supply

AC220V/ 50Hz/ 5A (OR AC110V)

Power

100W

Dimension (mm)

470×360×285mm(L×W×H)

Weight (kg)

15KG

Rotor parameters:

Rotor  No.

Rotor Name

Max. Speedr/min

Max. RCF

Capacity (Tubes* ml)

No.1

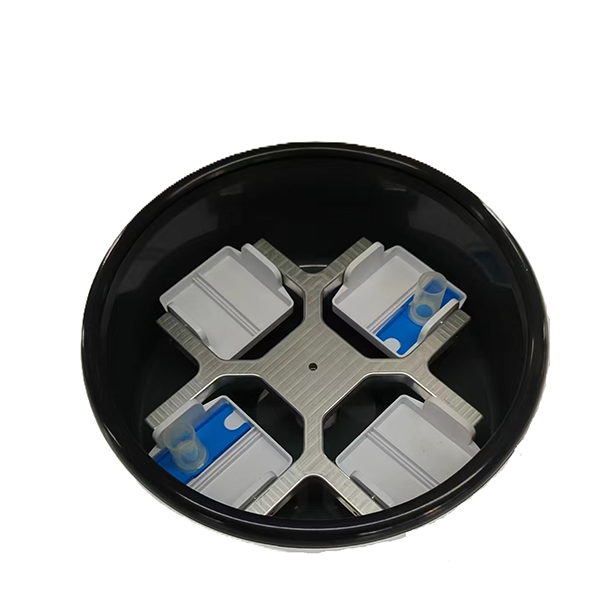

Horizontal rotor

3000

890

8×0.5ml

No.2

Fixed (angle) rotor

6×0.5ml

No.3

Fixed (angle) rotor

12×2ml
