CGF/PRF/ PRP (kit) Centrifuge

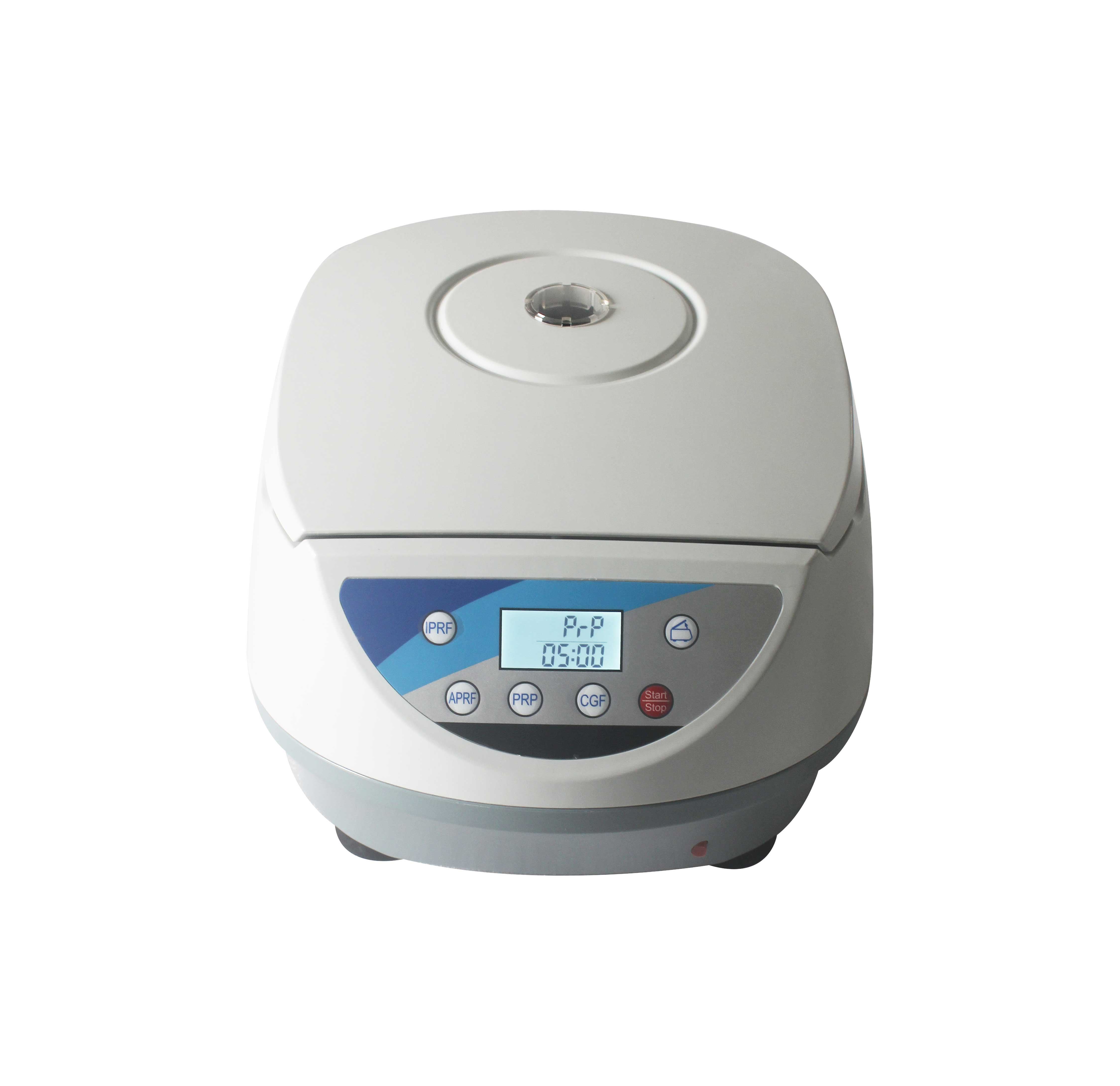

PG spinplus (PRF /CGF) Centrifuge L-400

Application:

Professional programs Setting, one button -touch operation for making 8 of platelet rich fibrin (PRF) or concentrate growth factors (CGF)clot at the same time. One machine for 2 modes “PRF” “CGF”. Microprocessor control offers the machine-controlled acceleration automatic.

Features:

Microcomputer control, Electric motor, Silent, constant, stable and high-speed accuracy.
Touch button, parameters can be set according to requirements during operation.
LCD display, which can switch the reading between rpm/RCF in real time.
ABS Outlook injection molding at one time, with simple appearance, light volume and low noise.
Equipped with electronic door lock, door cover, over-speed protection system, automatic failure alarm function, safe and reliable.

Specification:

Model	L-400
Max. Speed	500~4000r/min
Max. RCF	2200×g
Max. Capacity	12×10m
Speed Accuracy	±30r/min
Time Range	10s-99min59s
Noise	≤ 55 dB(A)
Voltage Supply	AC220V/ 50Hz/ 5A (OR AC110V)
Power	40W
Dimension (mm)	375x320x240mm(L×W×H)
Weight (kg)	5.5KG

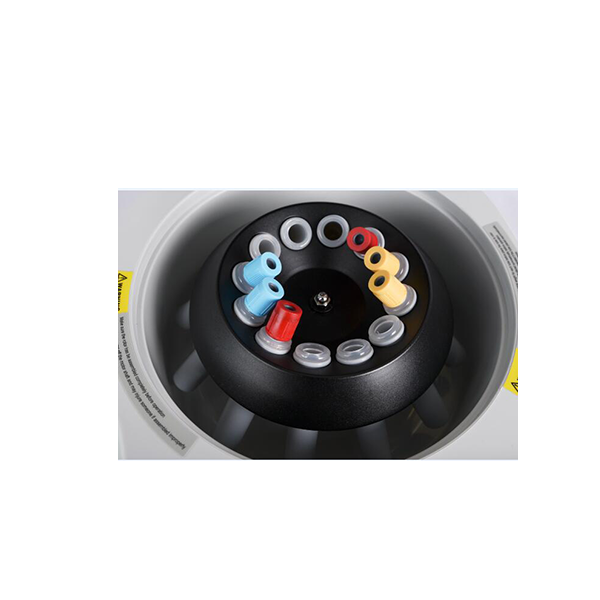

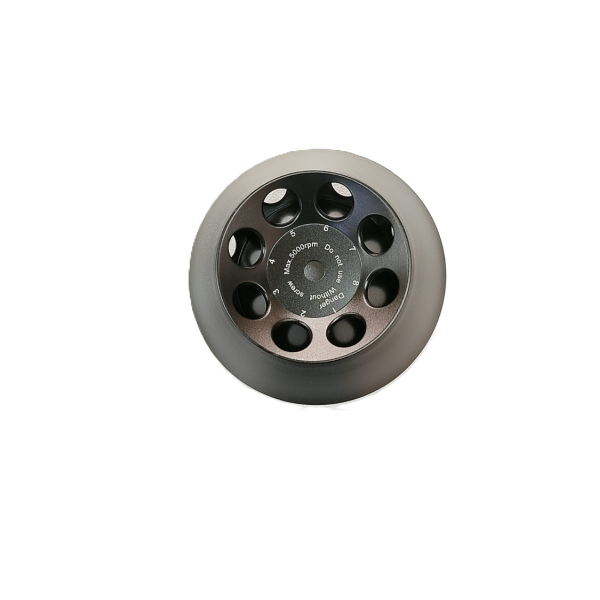

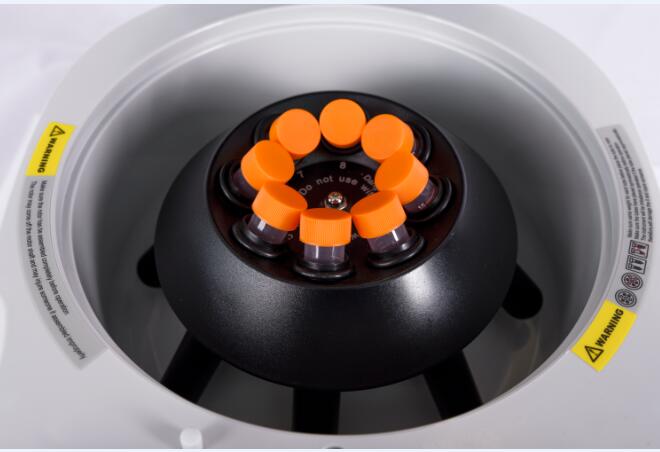

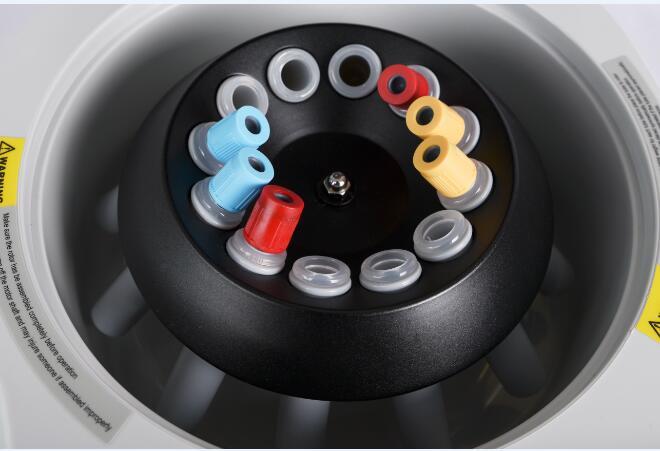

Rotor parameters:

Rotor No.	Rotor Name	Max. Speed（r/min）	Max. RCF	*Capacity (Tubes ml)**
No.1	Fixed (angle rotor)	5000	3074	6/8×15ml
No.2	Fixed (angle rotor)	4000	2220	12×5ml
No.2	Fixed (angle rotor)	4000	2220	12×10ml
