Application:

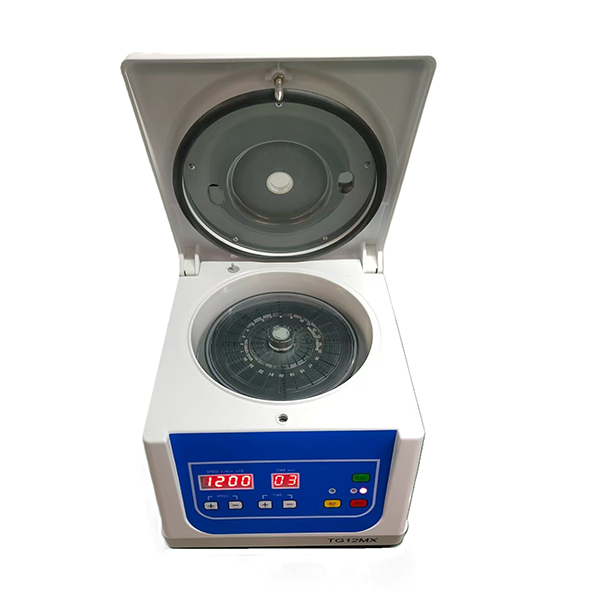

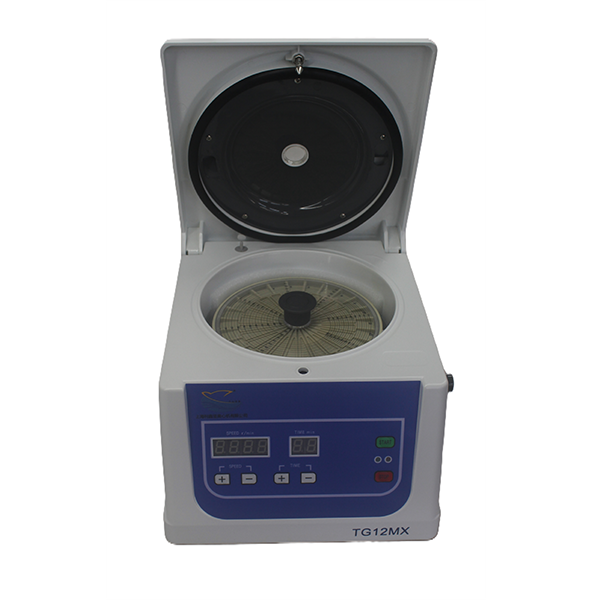

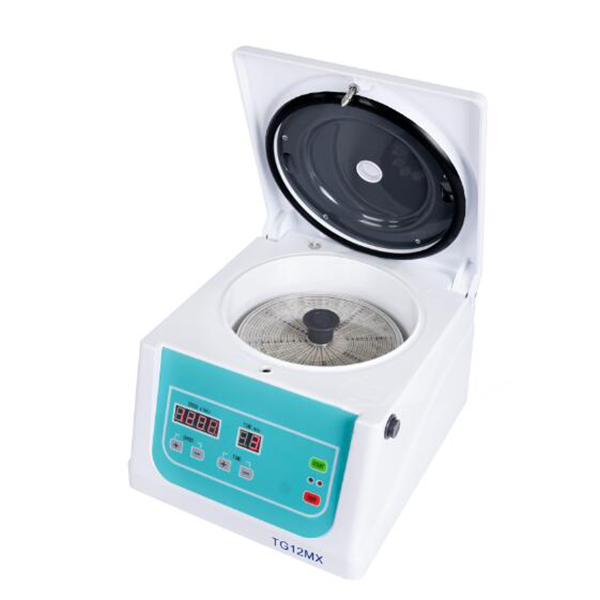

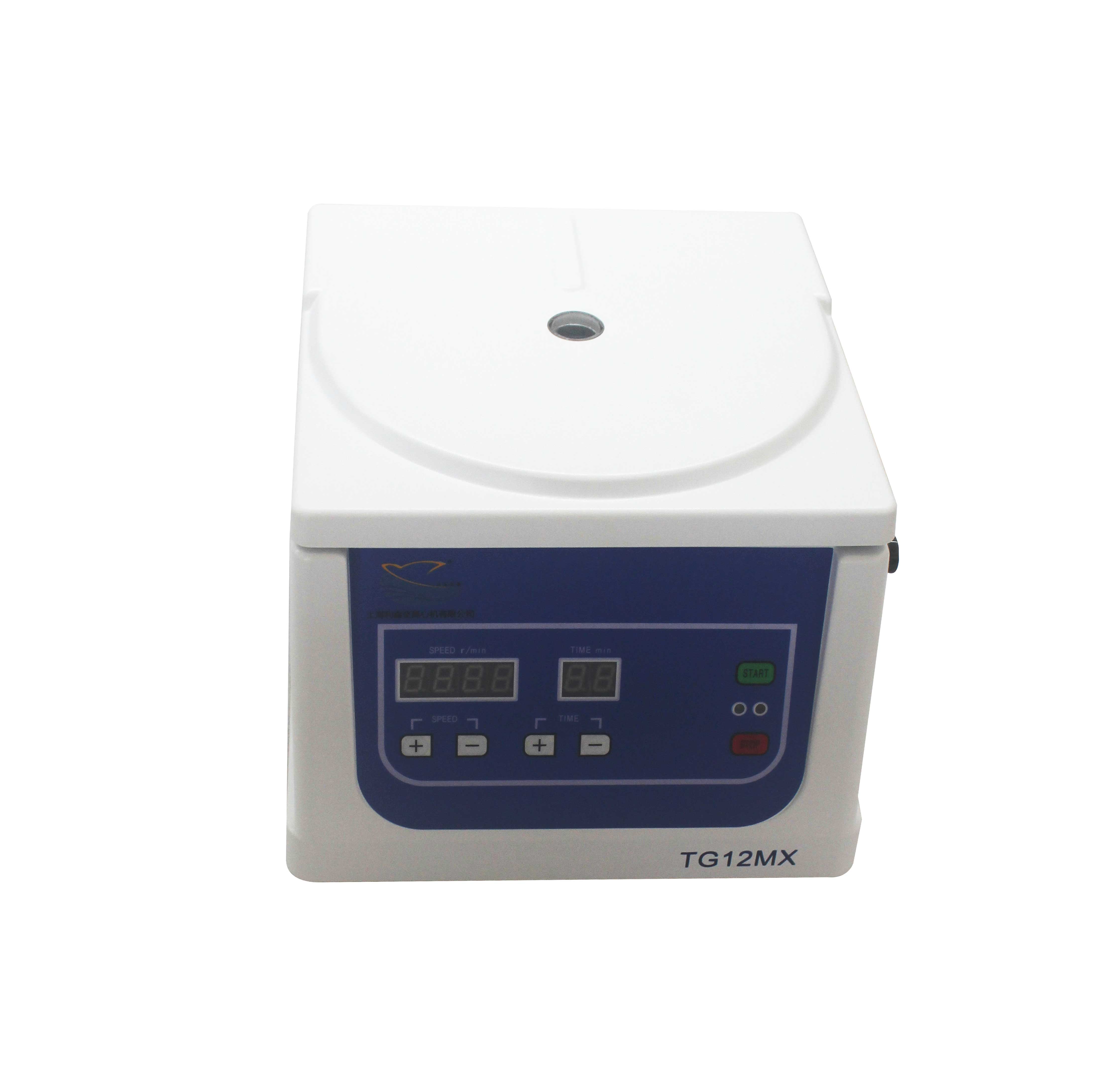

The HAEMATOKRIT TG12MX delivers
high-performance hematocrit centrifugal and convenient ergonomics and
versatility for the modern laboratory. Within a compact, elegant frame, the
HAEMATOKRIT TG12MX is able to hold up to 24 capillaries per run and achieves

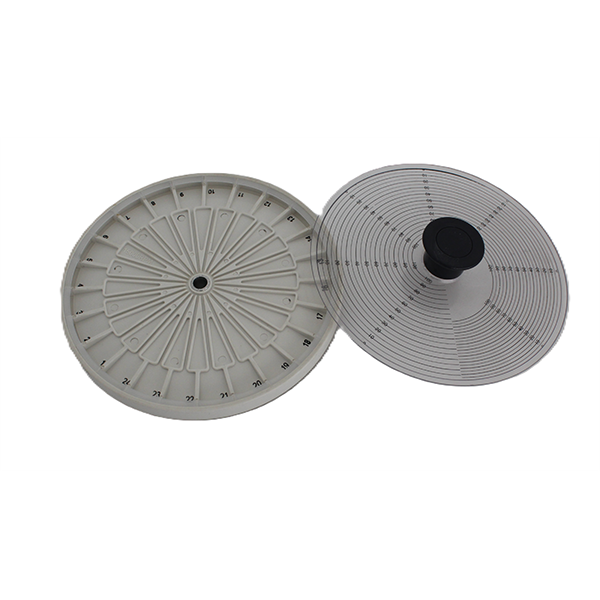

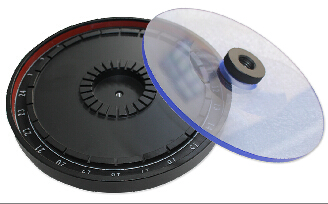

best results within seven minutes. The hematology rotor also features a lid
that doubles as an evaluation disc for quick and easy analysis.
Features:
- Microcomputer control, DC Frequency motor,
Silent, constant , stable and high speed accuracy.
- Touch button, parameters can be set
according to demands during operation and stored automatically.
- Digital display, which can switch the
reading between rpm/RCF in real time.
- ABS Outlook injection molding at one time,
with simple appearance, light volume and low noise.
- Lid safety device, with Lid, over-speed,
unbalanced protection system, automatic fault alarm function, safe and
reliable. Safety-Lock lid, which ensures a safe, tight closure on the
centrifuge chamber during operation. Electronic lock and emergency lid release
are available.
Specification:
|
Model
|
TG12MX
|
|
Max. Speed
|
12000r/min
|
|
Max. RCF
|
14800×g
|
|
Max. Capacity
|
24 capillary (75 mm length)
|
|
Speed Accuracy
|
±10r/min
|
|
Time Range
|
1min--99mins
|
|
Noise
|
≤65dB(A)
|
|
Voltage Supply
|
AC220V/ 50Hz/ 5A (OR AC110V)
|
|
Power
|
100W
|
|
Dimension (mm)
|
310×280×270mm(L×W×H)
|
|
Weight (kg)
|
8 KG
|
