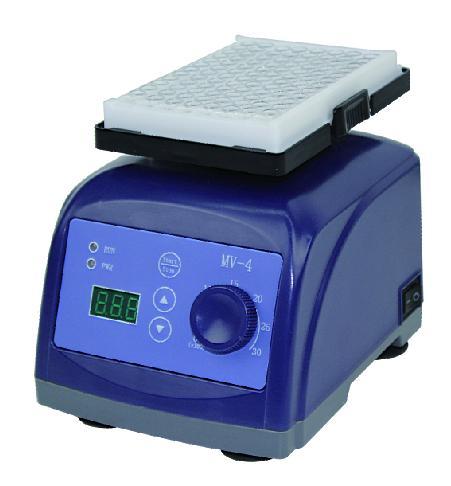

Model	MV-4
Voltage	AC220V±10%  50HZ
Power[W]	30
Oscillation mode	Circular motion
Circumference diameter	4.5mm
Max. Load（with fixter） [kg]	1kg
Input [W]	45
Output [W]	20
Speed Range [rpm]	0-2800  rpm/min
Speed setting & display	Simulation setup/scale display
Timing & display	With timing and countdown function. Digital display:1s-999min
Mode of operation	Continuous / Inching
Dimension [D×W×H mm]	155×125×110
Net. Weight [kg]	4kg
Temperature Permissible ambient [℃ ]	5-40
Humidity Permissible ambient	80%
Protection standard（EN 60529）	IP21

Specifications
1. Small mixer with simple, compact and beautifully designs
2. Adjustable and stationary blending machine
3. Widely used in biochemistry laboratory, chemical laboratory, hospital, radiation immunoassay, pharmaceutical and other routine laboratory equipment.
4. Used for sample tissue, cells, bacteria liquid, such as the chemical reagent oscillation, blending and mixing.
5. Different types of fixture can be installed
Specifications

1. Small mixer with simple, compact and beautifully designs

2. Adjustable and stationary blending machine

3. Widely used in biochemistry laboratory, chemical laboratory, hospital, radiation immunoassay, pharmaceutical and other routine laboratory equipment.

4. Used for sample tissue, cells, bacteria liquid, such as the chemical reagent oscillation, blending and mixing.

5. Different types of fixture can be installed

Features:

◆ High quality, competitive price, Strong and durable

◆ For different test tube, the centrifugal tube, such as enzyme label plate container of mix, achieve high efficiency spiral effect.

◆ New type spiral vortex mixer, suitable for a short period of time (at) or continuous work for a long time

◆ Wide speed range, 0 to 2800 RPM/min, motor stepless speed regulation

◆ Balance of eccentric block design, the amplitude of 4.5 mm, shock effect is perfect.

◆ Brushless motor drive directly. It is durable, quiet and maintenance free.

◆ Digital show the setting speed and operation speed, easy and clearly.

Timing function ,also can be countdown and digital showing .

◆ Various fixtures available and easy to install. Safe and easy to operated.

Package:

Main body：1pc
Standard gasket V1.1：1pc
Power adapter：1pc
Instruction：1pc

Accessories

Order Information:

Serial Number	Designation and Model	Description
	Vortex Mixer MV4 main engine	Main engine, simulative speed display，Timedigital display
	Standard attachment V1.1	For test tubes and small vessels  <Φ65mm. RPM range: 0-2800 (Sensor recognition)
	Microtiter attachment V1.3	For microtiter plate and square attachment. RPM range: 200-1500
	Flasks attachment V1.4	For triangle flask with a test tube. RPM range: 200-3000
	Rubber foam insert V1.41	Use with V1.4. For erlenmeyer flasks and big test tubes
	Test tubes (centrifugal tubes) adaptor V1.31	For 30 test tubes Φ10mm. Use with V1.3 attachment
	Test tubes (centrifugal tubes) adaptor V1.32	For 16 test tubes Φ12mm. Use with V1.3 attachment
	Test tubes (centrifugal tubes) adaptor V1.33	For 12 test tubes Φ16mm. Use with V1.3 attachment
	Test tubes (centrifugal tubes) adaptor V1.34	For 4 test tubes Φ29 mm. Use with V1.3 attachment
